GY-68 BMP180 Digital Atmospheric Pressure Module

Αξιολόγηση: Δεν αξιολογήθηκε ακόμη
Διαθεσιμότητα : Σε stock 13 Προϊόν(ντα) Άμεσα Διαθέσιμο
Κωδικός προϊόντος :12-00B081

Βάρος και διαστάσεις προϊόντος

Βάρος προϊόντος: 0.0200KG
3,30 €
Χωρίς ΦΠΑ : 2,66 €

Περιγραφή

Description

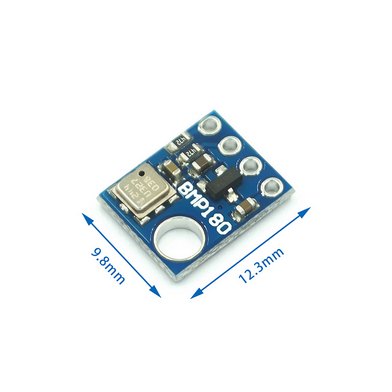

This board is a barometric pressure sensor that is based on BMP180. It is a new Bosch Sensortec digital barometric pressure sensor that can be applied in advanced mobile devices, such as smartphones, tablet PCs and sports devices.
The standard pressure at sea level is 101,325 Pa.
The pressure decreases with height, so you can use this to determine the altitude. Temperature and humidity also affect the pressure.
Therefore, you can use this sensor to measure changes in pressure and predict the weather.
Generally, increasing pressure indicates stable and often sunny weather and decreasing pressure indicates chances for rain and cloudy weather.
This sensor provides the weather, industrial, rocketry, balloon, and many other pressure sensing applications. The sensor is designed for use as a micro-altimeter, so it has an incredible resolution. By moving it up and down the changes in output values can be changed.

Features
Chip: BMP180
Output Type: Digital
I / O Voltage: 1.62V ~ 3.6V
Input Voltage: 1.8V ~ 3.6V
Pressure Range: 300hPa ~ 1100hPa
RMS noise expressed in pressure: 0.06 hPa (ultra-low power mode)
                                                        0.02 hPa (ultra high-resolution mode)
RMS noise expressed in altitude:   0.5 m (ultra-low power mode)
                                                        0.17 m (ultra high-resolution mode)
Pressure Accuracy : ±0.12 hPa
Temperature Range: -40°C ~ +85°C
Temperature Accuracy: ±2°C
Meassurment Time: 5ms
Interface: I2C
Pin Number: 4 Pins
Size: 10mm x 13mm
