Raspberry Pi RP2040 Microcontroller

The Raspberry Pi RP2040 is the first microcontroller designed in-house at Raspberry Pi (“Raspberry Silicon”).

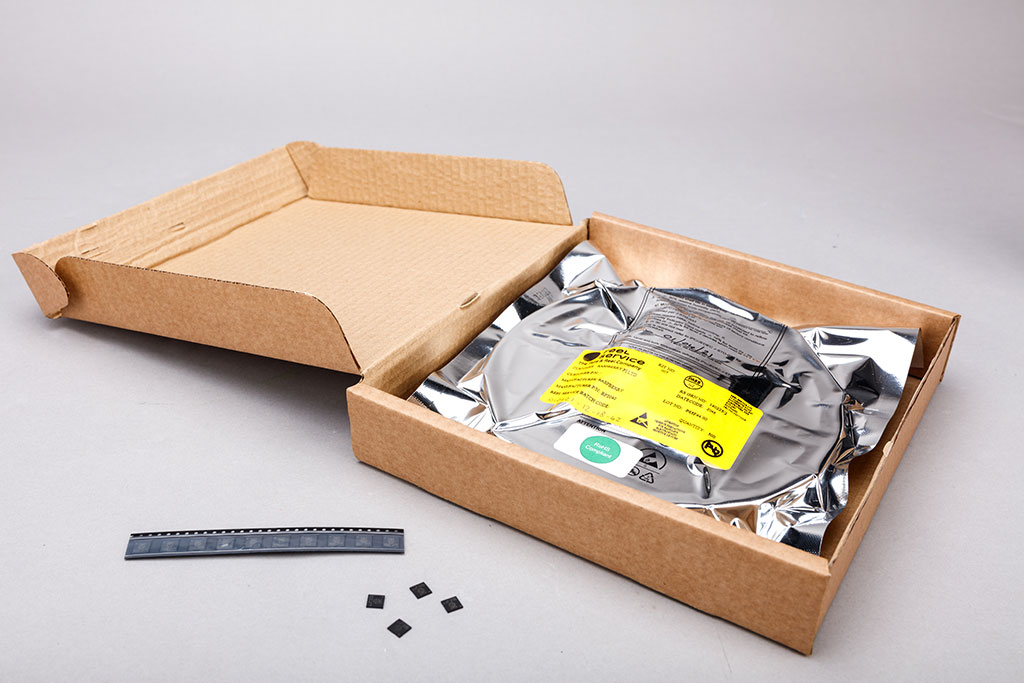

Initially only available onboard the Raspberry Pi Pico, it is now available to buy as a standalone microprocessor chip for your own home-made RP2040 PCB designs, industrial applications and more.

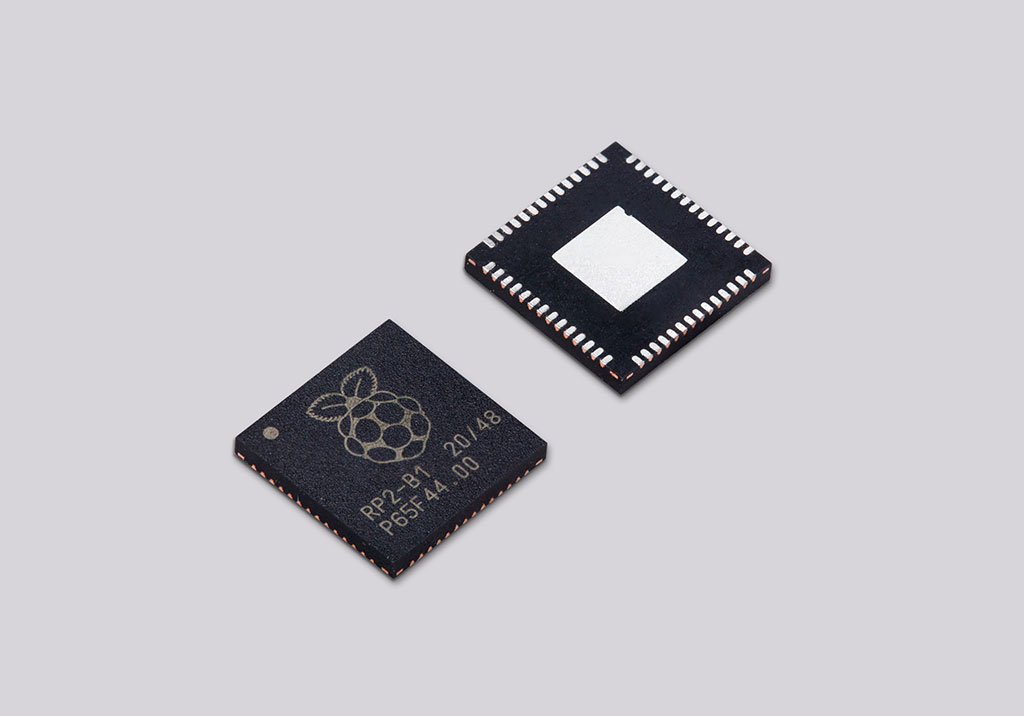

The RP2040 microcontroller comes in a QFN-56 package. The recommended PCB footprint can be found in the datasheet (or see the image below in the Resources section.

Features

• Dual-core Arm Cortex-M0+ @ 133MHz
• 264KB of on-chip RAM
• Support for up to 16MB of off-chip Flash memory via a QSPI bus
• DMA controller
• Interpolator and integer divider peripherals
• 30 GPIO pins, 4 of which can be used as analogue inputs
• 2 × UARTs, 2 × SPI controllers, and 2 × I2C controllers
• 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × Raspberry Pi Programmable I/O (PIO) state machines
• USB mass-storage boot mode with UF2 support, for drag-and-drop programming

RP2040 Datasheet

https://datasheets.raspberrypi.org/rp2040/rp2040-datasheet.pdf

Micro machine learning

With two fast cores, plenty of on-chip RAM, and a port of TensorFlow Lite, RP2040 is a great platform for machine learning applications.

TensorFlow Lite for RP2040

https://github.com/raspberrypi/pico-tflmicro
