Raspberry Pi Debug Probe

Rating: Not Rated Yet
Availability: in stock 112 item(s) Άμεσα Διαθέσιμο
Product Code:SC0889

Product Dimensions and Weight

Product Weight: 0.0500KG
14,90 €
Sales price without tax 12,02 €

Description

Raspberry Pi Debug Probe

The Raspberry Pi Debug Probe is an all-in-one USB-to-debug kit that provides all the necessary hardware and cables for easy, solderless, plug-and-play debugging.

It features both a processor serial debug interface (by default the Arm Serial Wire Debug interface, but other interfaces can be supported) and an industry-standard UART interface. Both interfaces use the Raspberry Pi 3-pin debug connector, as detailed in the
Raspberry Pi 3-pin Debug Connector Specification (see rptl.io/debug-spec).

The Raspberry Pi Debug Probe is presented as a kit, packaged in a reusable box, comprising the Debug Probe hardware in its own plastic case together with a USB cable and three types of debug cable, covering the vast majority of debug use cases. It is designed to make it easy to debug and program Raspberry Pi Pico and RP2040 with a range of host platforms including Windows, Mac, and typical Linux computers.

While designed for use with Raspberry Pi products, the Debug Probe provides standard UART and CMSIS-DAP interfaces over USB, so it can also be used with other processors, or even just as a USB-to-UART cable. It works with OpenOCD and other tools that support
CMSIS-DAP.

The Debug Probe is based on Raspberry Pi Pico hardware and runs the open source Raspberry Pi Picoprobe software (https://github.com/raspberrypi/picoprobe). The firmware is updated in the same way as Raspberry Pi Pico firmware, so it is easy to keep the unit up to date with the latest firmware, or to use custom firmware.



Specification

Form factor: 22mm × 32mm
Features:

  • USB to two-wire serial debug bridge (Arm Serial Wire Debug supported by default)
  • USB to UART bridge
  • Compatible with the CMSIS-DAP standard
  • Works with OpenOCD and other tools supporting CMSIS-DAP
  • Follows the Raspberry Pi 3-pin Debug Connector Specification

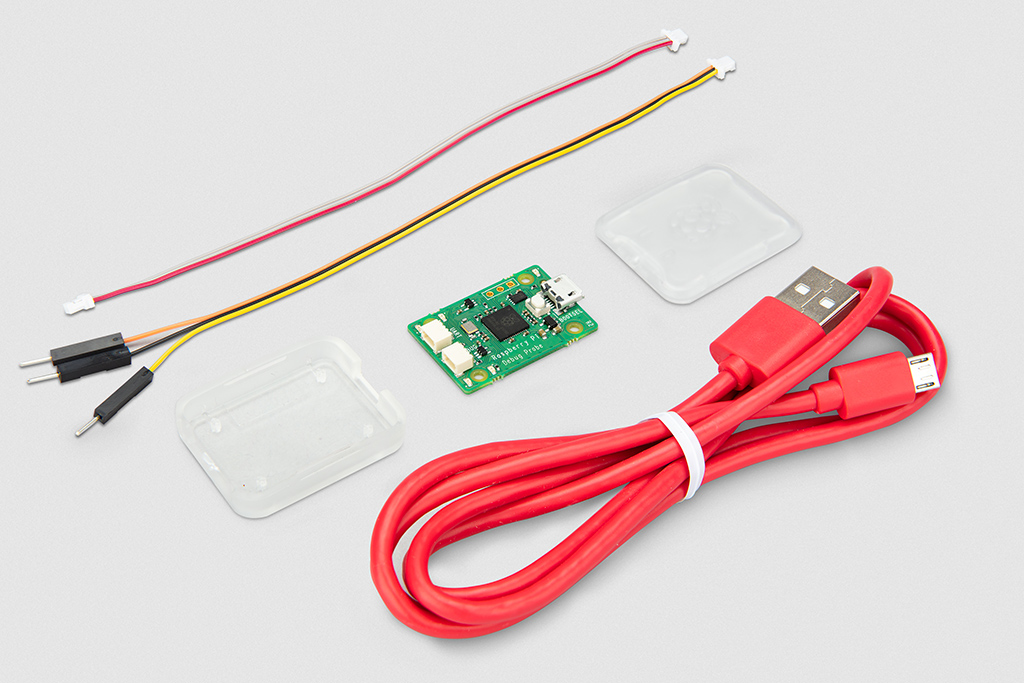

Included:

  • High-quality plastic case
  • USB cable
  • Three debug cables:
  • 3-pin JST connector to 3-pin JST connector cable
  • 3-pin JST connector to 0.1-inch header (female)
  • 3-pin JST connector to 0.1-inch header (male)

Nominal I/O voltage: 3.3V
Operating temperature: -20°C to +70°C
Production lifetime: The Raspberry Pi Debug Probe will remain in production until

at least January 2028

Compliance: For a full list of local and regional product approvals,

please visit pip.raspberrypi.com
